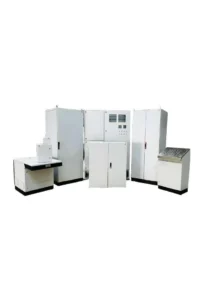

Our Products

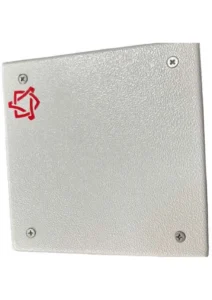

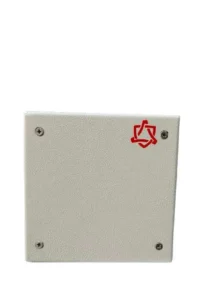

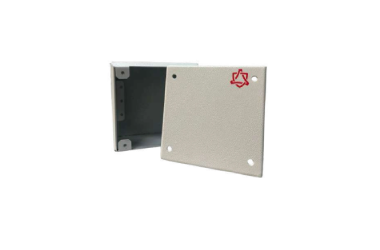

Terminal Box
This is an PINAKI series terminal box (TB). These enclosures engineered to provide protection for electrical connections and components in various environments.
- Available in mild steel and stainless steel variants.
- Offers IP65-rated protection against dust and water ingress.
- Suitable for indoor and outdoor applications.
- Features M6 earthing studs in the body and cover.

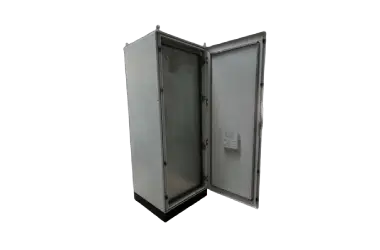

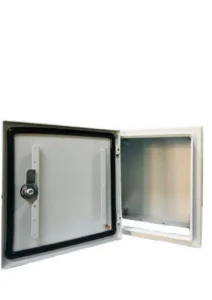

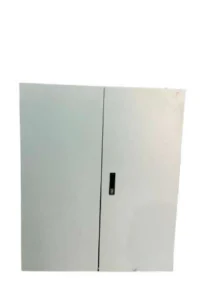

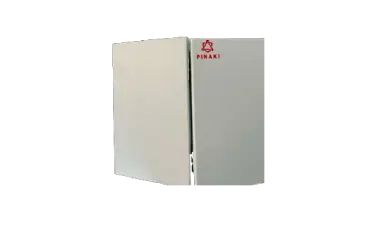

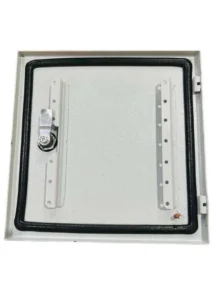

CRCA Enclosure
A CRCA enclosure is a protective metal box, typically for electrical or
electronic equipment, made from Cold Rolled Close Annealed (CRCA) steel,
known for its strength, smooth finish, and durability after a special heat
treatment. provide protection ratings IP65 for dust/water. with standard
sizes
- Base Material: Cold Rolled Close Annealed (CRCA) with IP65 rating as per IEC 60529, tested by NABL-approved laboratory.
- Thickness:
- Body & Door: 1.6 mm (common for sizes up to 1400 × 1200 × 400 mm)
- Mounting Plate: 2.0 mm (GPSP)
- Gland Plate: 2.0 mm thickness
- Hinges: Modular hinges provided
- Gasket: PU gasket of 14 mm
- Standard Colour: RAL 7032 & RAL 7035

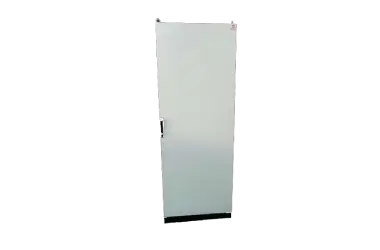

Multifold Panel
Based on the CRCA multifold frame having best strength and modular panel. PLC Drive type panel . Multifold Electrical Panel (PLC Drive Type Panel)
- Structure: Multifold profile section designed for high strength and modular panel construction.
- Material Specification:
- Frame: 2.0 mm thick CRCA (Cold Rolled Close Annealed) mild steel
- Door, Side Cover & Back Cover: 1.6 mm thick CRCA
- Base Frame: 3.0 mm modular base frame with 15 mm anti-vibration pad
- Gasket & Accessories:
- Self-gripping Neoprene foam gasket
- Removable door stripers
- Drawing pocket provided
- Protection Class: IP54 standard
- Dimensions: Customizable as per customer requirements; standard heights range from 1800 mm to 2000 mm in 25 mm increments

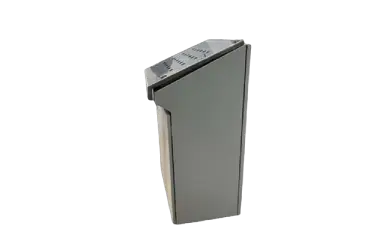

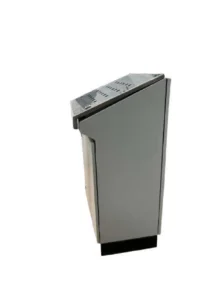

Consol Desk
Console desktop panels refer to two main types: industrial/operator
control consoles used for machinery/systems and functional desktop
accessory panels for PC customization.
Here are the specifications :
- Application: Rugged, freestanding or desktop units used in control rooms for monitoring and SCADA systems
- Material:
- 1.6 mm to 2.0 mm thick CRCA (Cold Rolled Close Annealed) steel
- Optional: Stainless Steel (SS 304 / SS 316) for harsh environments
- Top: MDF (Medium Density Fibreboard)
- Dimensions: Customizable as per requirements; typical:
- Width: 30" to 72"
- Height: 28" to 32"
- Protection Rating: IP40 to IP55 / IP56 (dust and water protection)
- Finish: Powder-coated finish in standard colours such as RAL 7032, RAL 7035, or RAL 7045

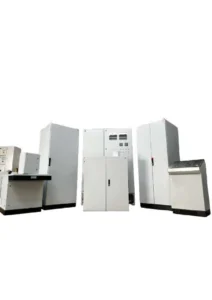

Modular panel
Modular panel enclosures (often referred to as 9-bend or 9-fold profile cabinets) are advanced, high-strength, modular electrical enclosures commonly used in industrial automation, power distribution, and server, networking, and telecommunication applications. Their key characteristic is a vertical frame profile with nine bends, which provides superior load-bearing capacity and rigidity.
- Frame Structure: Specially designed modular panel using galvanized or cold-rolled steel profiles (1.5 mm – 2.0 mm thickness)
- Material:
- Doors / Side Panels: 2.0 mm thick CRCA (Cold Rolled Close Annealed) steel
- Dimensions:
- Width: 600 mm, 800 mm, or 1000 mm (standard)
- Height: 1600 mm to 2200 mm and above
- Depth: 400 mm, 500 mm, 600 mm, 800 mm, or 1000 mm
- Surface Treatment:
- Degreasing, pickling, and phosphating (zinc phosphate ~70 microns)
- Sand blasting (60–80 microns)
- Powder coating in standard colours: RAL 7035, RAL 7032, or RAL 9004
Sustainability
Committed To Keep People Healthy & Safe
Customized Solutions for Demanding Automation & Control Applications
We Follow Best Practices
Customized Solutions for Demanding Automation & Control Applications
- Sustainablility
- Project On Time
- Modern Technology
- Latest Designs
What We Delivers
Our Services
Whar Our Clients Say
Testimonials
Our Clients
“We have been using these electrical panels across our control systems, and the build quality is exceptional. The CRCA construction, precise thickness standards, and high-grade surface treatment ensure durability even in demanding environments. The modular design and customization options made installation seamless, and the IP-rated protection gives us confidence in long-term performance.”
Our Clients
“The multifold and modular panel systems have proven to be highly reliable for our PLC and SCADA applications. The attention to detail—right from anti-vibration base frames to gasket sealing and powder-coated finish—reflects superior engineering standards. These panels not only meet but exceed our expectations in terms of strength, safety, and flexibility.”
Request a Quote
Learn More From
Frequently Asked Questions
These panels are manufactured using high-quality Cold Rolled Close Annealed (CRCA) steel with thickness ranging from 1.6 mm to 2.0 mm. For harsh environments, Stainless Steel (SS 304 / SS 316) options are also available.
The panels are designed with protection ratings ranging from IP40 to IP65, depending on the application. This ensures reliable protection against dust and water ingress, making them suitable for indoor control rooms as well as industrial environments.
Yes, all panels are highly customizable. Standard dimensions are available, but width, height, depth, mounting options, and internal configurations can be tailored to meet specific customer requirements, including PLC and SCADA system integration.
